Raster Data Conversion > Converting Other Raster Formats to SGR

Converting Other Raster Formats to SGR

SuperGIS DataConvertor allows the conversion between the 8 common raster formats and ASCII File (*.txt) and SGR format. Following the steps, you will be able to convert the common raster formats or ASCII File (*.txt) to SuperGeo’s SGR format with SuperGIS DataConvertor easily.

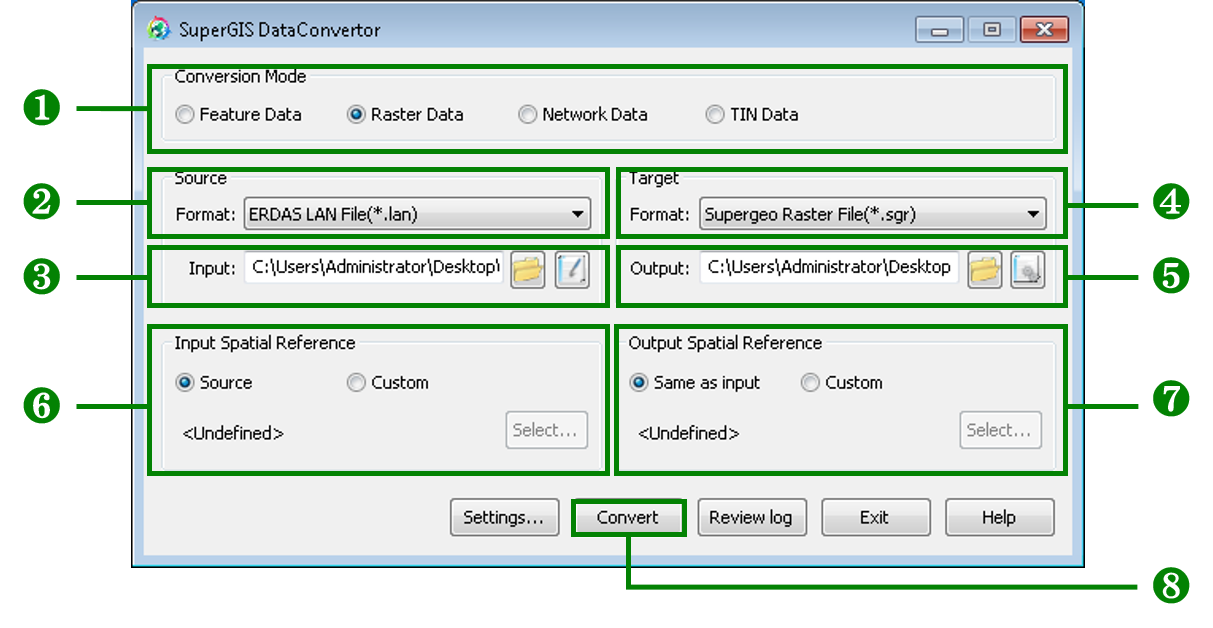

1. Select Raster Data for Conversion Mode.

2. In Source, choose the raster format you would like to convert to SGR in Format.

3. In Source, click Open File button or Input Files Manager in Input to add the raster data. Also , you can key in the path in the text box directly.

4. In Target, choose SuperGeo Raster File (*.sgr) in Format.

5. In Target, click Browse for Folder button or key in the path for saving the file in Output.

6. In Input Spatial Reference, set the spatial reference for the input file.

7. In Output Spatial Reference, set the spatial reference for the output file.

8. When all the settings are completed, click Convert button on the lower-right corner of the window to start the conversion.
