Converting SGR to Other Raster Formats

SuperGIS DataConvertor allows SuperGeo’s SGR raster format and other raster formats to convert to each other. Following the steps, you will be able to convert SGR format to the other 8 common raster formats and ASCII (*.txt) with SuperGIS DataConvertor.

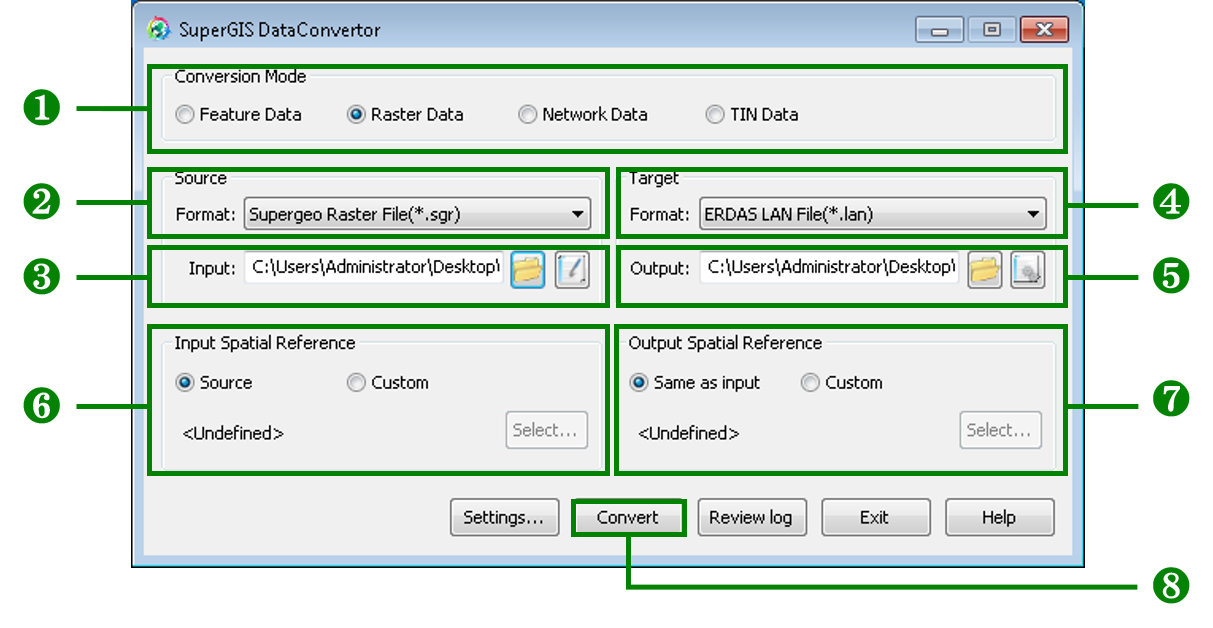

1. Select Raster Data for Conversion Mode.

2. In Source, choose SuperGeo Raster File (*.sgr) in Format.

3. In Source, click Open File button or Input Files Manager in Input to add the raster data. Also , you can key in the path in the text box directly.

4. In Target, choose the raster format you need in Format.

5. In Target, click Browse for Folder button in Output or key in the path for saving the file directly.

6. In Input Spatial Reference, set the spatial reference for the input file.

7. In Output Spatial Reference, set the spatial reference for the output file.

8. When all the settings are completed, click Convert button on the lower-right corner of the window to start the conversion.
