Zonal Histogram

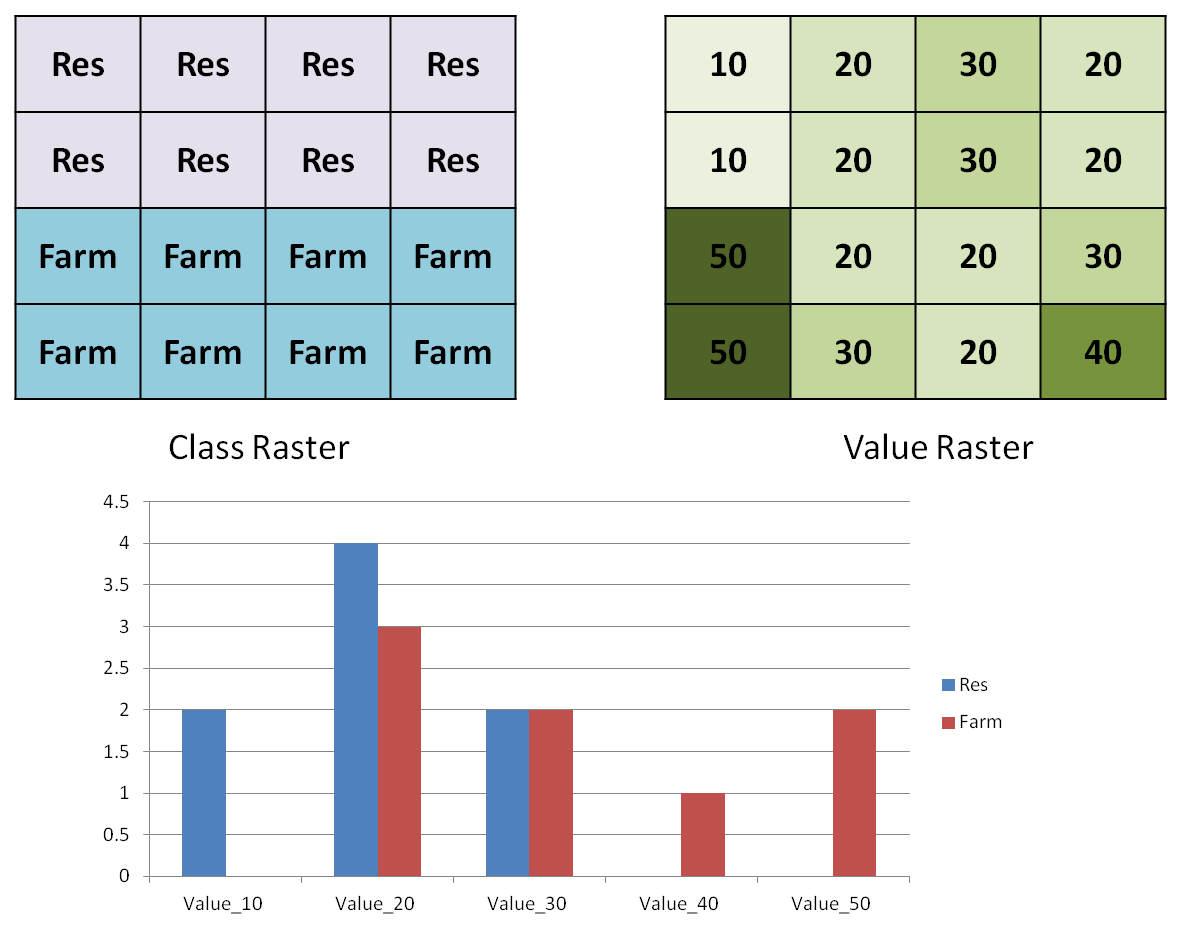

Formulate zone data as the vertical axis and value data as the horizontal axis, and then create a table and histogram. For example, you can apply land use data as a class data and slope data as value data. After analyzing, you will obtain a table, and a histogram showed the slope distribution in each zone.
Description of Parameters
Item |
Description |
Data Type |
Zone Raster |
Specify the zone raster that defines to be analysis |
Raster data |
Zone Field |
The zone information to be assigned to calculate |
Attribute data |
Value Raster |
Specify the value raster that defines to be analysis |
Raster data |
Output Table |
The filename and the path of the output |
Table data |
Output graph (Optional) |
The filename and the path of the output |
Image |
