Extract by Attribute
The tool allows users to filter a set of cell value that meets the condition (attributes) by expression(Where). For instance, extract the cells whose slope is higher than 10%.
The fit cell locations (True) will be assigned the original value, if the input is an integer, the output will also be an integer; if the input is a decimal, the output will also be a decimal. The cell locations(False) that do not fit will be assigned NoData. The fit cells are not necessary to connect each other.

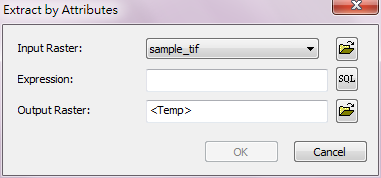

Description of Parameters
Item |
Description |
Data Type |
Input Raster |
The raster data that will be extracted by expression. |
Raster layer |
Expression |
The conditional expression. |
SQL expression |
Output Raster |
The filename and path of the output raster. |
Raster layer |
