Expand

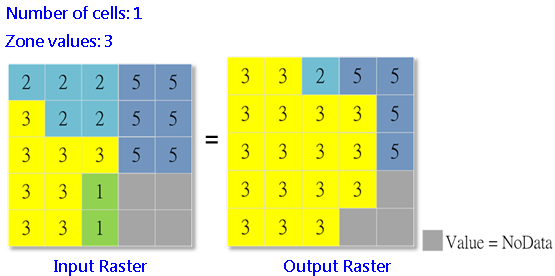

Expand, to expand a zone to another zone. Principally, when you perform the analysis, the selected zone value will be considered as foreground zones, while the remaining will be considered as the background zones. The foreground zones will expand to background zone. The cell whose value is NoData will be considered as the background zone forever, and any cell around this cell can expand to it.

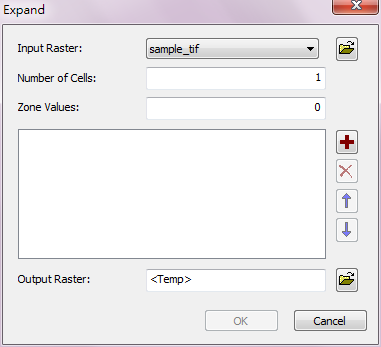

Description of Parameters
Item |
Description |
Data Type |
Input Raster |
The raster data to be expanded. |
Raster layer |
Number of Cells |
The number of cells of the specified zone to expand. |
Integer |
Zone Value |
The cell values to expand. |
Integer/Floating point |
Output Raster |
The filename and path of the output raster. |
Raster data |
