Layer Setting

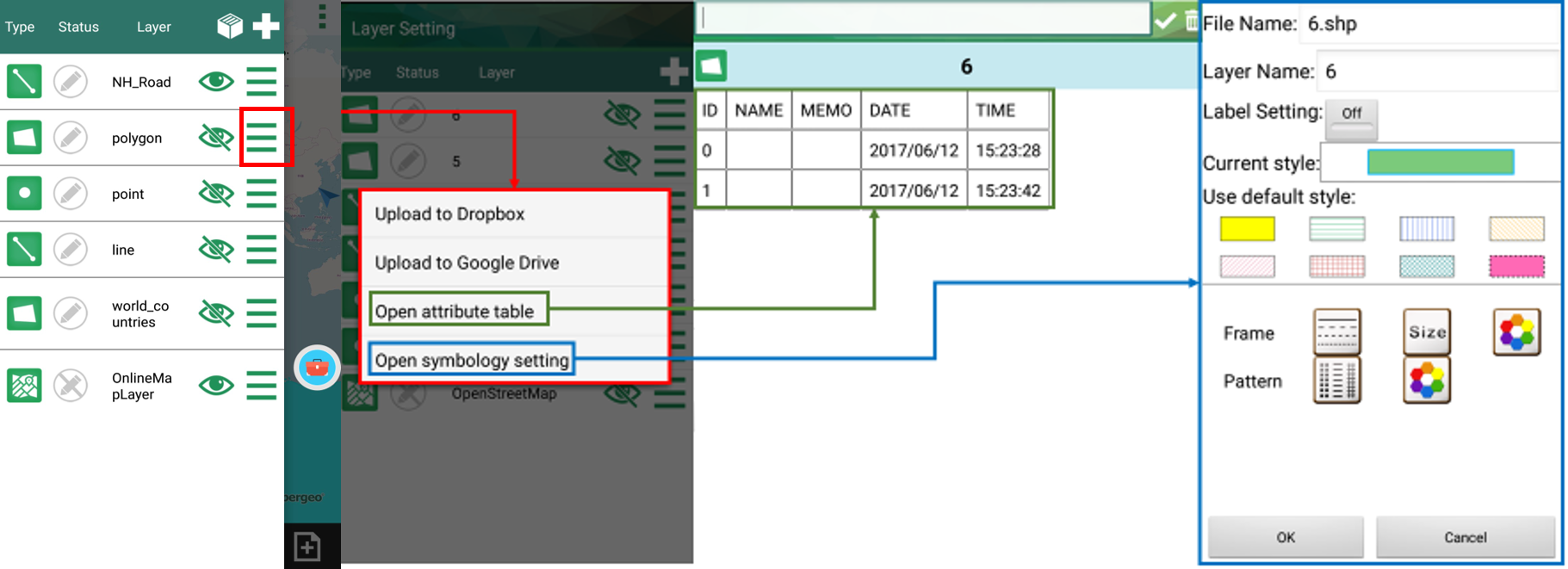

With Layer Management, you can add a layer to the map and set the properties of the layer. If you create a new layer, you can customize tables to enter the attribute data rapidly.

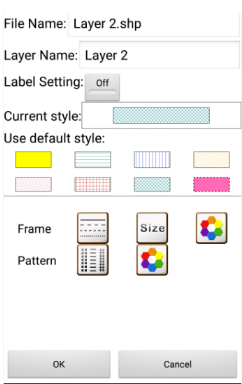

Take layer of polygon for example. There are six items.







•File name : show the file name.

•Layer name : show the layer name.

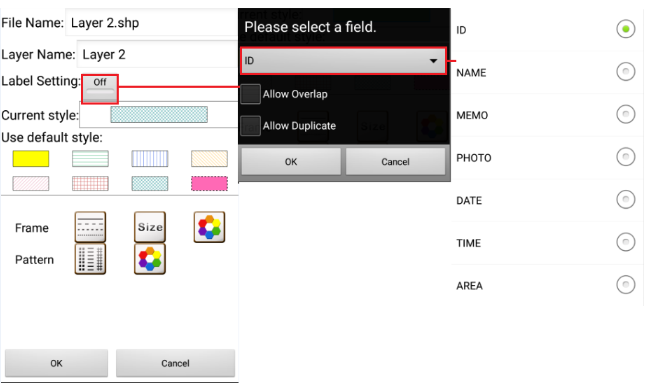

•Label setting : swift on/off label setting, and select the items you want.







•Current style : choose the style.

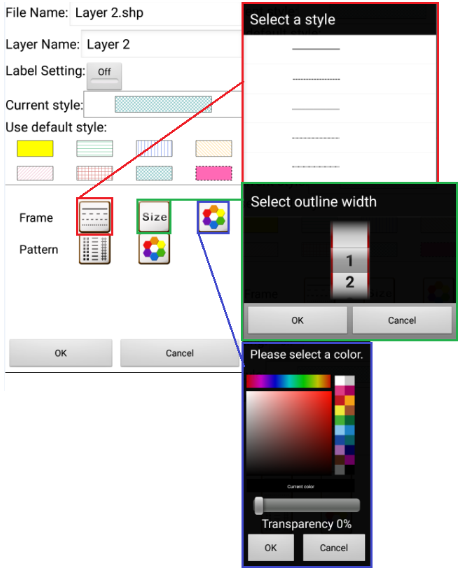

•Frame : including three items, style, width of line and color.

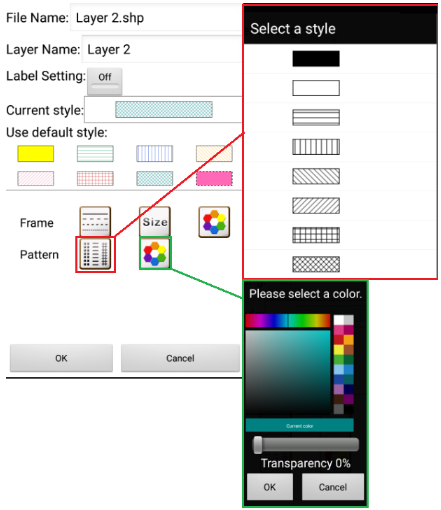

•Pattern : including two items, style and color.









---
