IIS Installation and Firewall Setting > Server Operation System > Windows Server 2008 R2 > Set the permission of IIS virtual directory, security, and ASP.NET version

Set the permission of IIS virtual directory, security, and ASP.NET version

1). As the virtual directory is add to IIS, what should be set is the permission of virtual directory, security, and the version of ASP.NET. Here, we take SGSPWS for example. The ways to set MapCache are the same, and please follow the steps to set them. Firstly, select SGSPWSE below Default Web Site, click Features View in the right panel and click Authentication.

2). In Authentication, you can view the enabled authentication. If you allow everyone to use the SuperGIS Server account and password to access the data, please make Anonymous Authentication enabled and click OK. Then, users who have the correct account and password can connect to SuperGIS Server and use the services you publish.

3). If you only allow some specific users to use the service, please uncheck Anonymous Authentication and add other security authentication. Right-click Web Server (IIS) and click Add Role Services.

4). In Select Role Services page, expand Web Server > Security, and you can check the authentications you need. Then click Next to install.

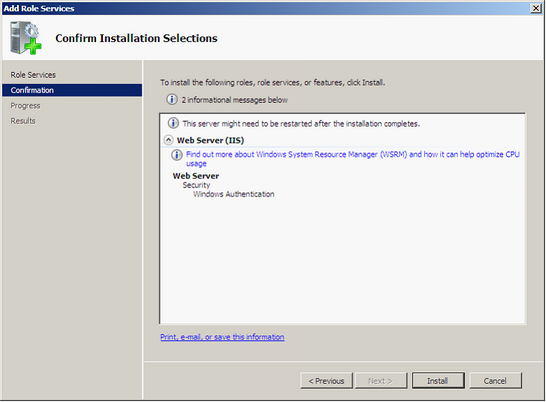

5). As Confirm Installation Selections shows up, click Install to start the installation.

6). As the settings are completed, please check the settings of application pool of virtual directory. If you did not modify the application pool when you added the virtual directory, the application pool adopts Default Web Site setting, which is .NET Framework v2.0.

Expand Server Manager, click Roles > Web Server (IIS) > Internet Information Service (IIS) Manager, and click Sites > Default Web Site > SGSPWS, and click Basic Settings.

You can see Application pool is DefaultAppPool.

Expand Server Manager node, click Roles > Web Server (IIS) > Internet Information Service (IIS) Manager, and find Application Pool in Connections. You can see the version of .NET Framework is v2.0.

7). The ways to set MapCache virtual directories are the same as the previous instruction. Please follow the steps mentioned above to complete all the settings of the virtual directories.
