Land Parcel Editor > Manage Plans

Manage Plans

In SuperGIS Desktop, the parcel data is recorded in plans, and a parcel in the parcel fabric is associated with one plan. You can check the associated plan of the parcel feature by look up to its PlanID in the attribute table. Plans are the transactional model in the parcel fabric. Therefore, you need at least one plan to record the parcel data and edit them. When you enable editing, a default plan called <map> will be added to the plan directory, and all the parcels will be associated with the default plan. You can click Land Parcel Editor>Plan Directory to open the Plan Directory window and manage the plans.

Add New Plans

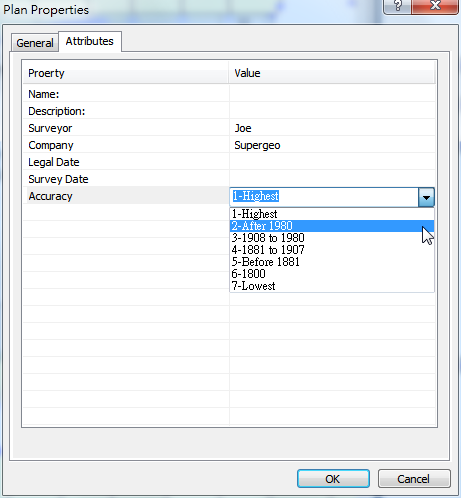

To add a new plan, you can click Create Plan to add a new plan in the Plan Directory window. Or you can use Select Features tool, and right-click on its associated plan in the Parcel Explorer. Then select New Plan… to open the Plan Properties window, where you can see the General and Attributes tabs. In the General tab, you can modify the plan name in the Name input box, and add the description of the plan in the Description input box. In the Attributes tab, you can enter the details of the plan, including its surveyor, company, legal data, survey data, and accuracy level. After all the information is provided, you can click OK to add the plan.

Edit Plan

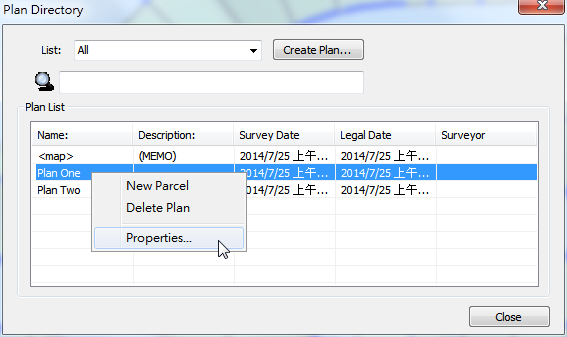

To edit a plan, you can right-click on the plan and select Properties… in the Plan Directory window. Or you can use Select Features tool, and right-click on its associated plan in the Parcel Explorer. Then select Properties… to open the Plan Properties window, or select Rename to rename the plan. You can modify all the information here including its name, description, surveyor, company, legal data, survey data, and accuracy level. After all the information is provided, you can click OK to add the plan.

Delete Plan

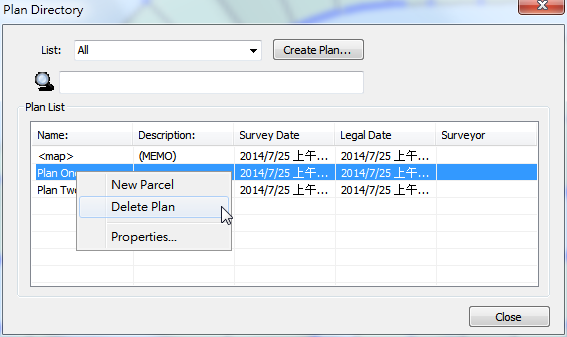

To delete a plan, you can right-click on the plan and select Delete Plan in the Plan Directory window. Or you can use Select Features tool, and right-click on its associated plan in the Parcel Explorer and select Delete Plan.
