Map Page Design

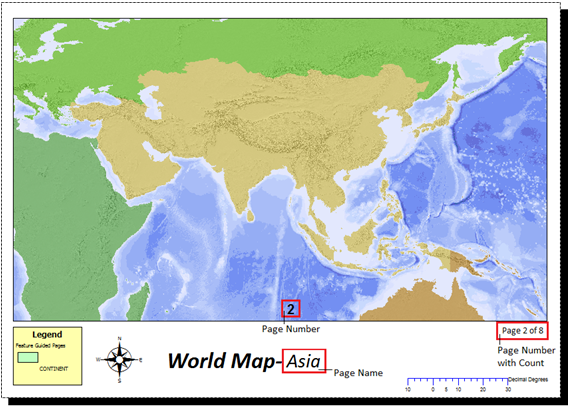

SuperGIS Desktop 10 provides you some tools to design your own map page, including insert page name, number or other customized contents. To insert page name, click Insert Text>Page Name, then the feature’s name will be shown on the map page. To insert page number, you can click Insert Text > Page Number or Insert Text > Page Number with Count. Refer to the figure below to see their difference.



　





If you want to add texts other than page name and number, you can use Inset Text > Expression…. In the Expression window, you can select the fields to show, and the selected fields will be shown in the Expression box. Then click OK to add the text.





---
