1.

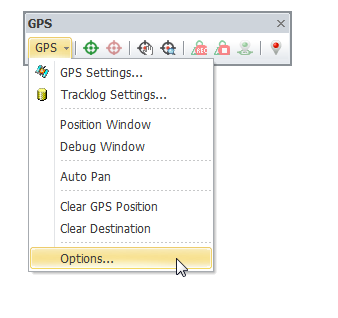

Open "GPS" Toolbar, click "GPS" drop-down menu and click "Options."

2.

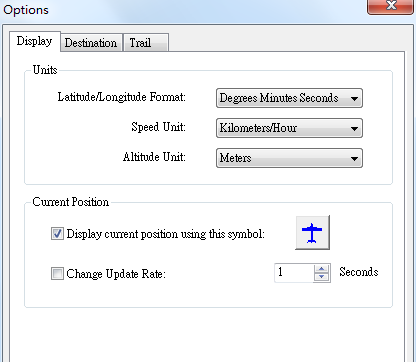

"Options" dialog box opens.

3.

Click the "Display" tab.

4.

The "Display" tab is divided into two parts, "Units" and "Current Position." Now we are going to explain the function of each item.

5.

"Units" is to set up the format of Latitude/Longitude, unit of speed and Altitude to display when GPS moves.

6.

"Current Position" is to set up the display type of current GPS position, such as symbol and data update rate.

7.

Set up the format of Latitude and Longitude in "Latitude/Longitude Format", three options are provided, including "Degrees Minutes Seconds", "Degrees Minutes", and "Decimal Degrees."

8.

Set up speed unit to display in "Speed Unit."

9.

Set up Altitude unit in "Altitude Unit."

10.

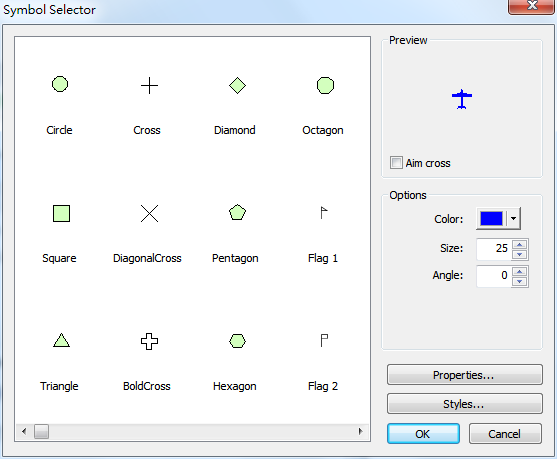

Check "Display current position using this symbol" and click the icon next to open "Symbol Selection" dialog box; here you can set up the symbol to represent GPS point.

11.

Check "Change Update Rate" and set up update rate, system will update current GPS position based on the setting.

12.

When all settings are finished, click "OK."
