Tracklog Settings
When GPS moves, the GPS track can be recorded through Tracklog settings.
1. |
Open "GPS" Toolbar, click "GPS" drop-down menu and click "Tracklog Settings." |
2. |

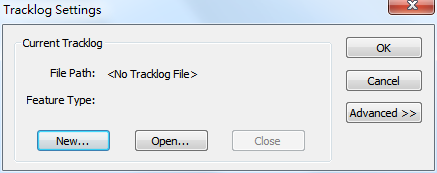

"Tracklog Settings" dialog box opens. |
3. |

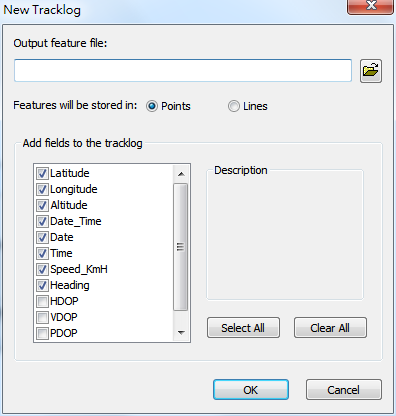

Click "New", "New Tracklong" dialog box opens; now users can set a new tracklog file. |
4. |
Click icon next to "Output feature file", "Save as New File" dialog box opens and set up the filename and file path for the new tracklog file. |
5. |
Select new tracklog file to be stored in point feature or line feature in "Features will be stored in." |
6. |
Select the fields of tracklog data you want to record in "Add fields to the tracklog." |
7. |
If you do not understand what data is recorded in the field, you can check any one of the fields to see the function description on "Description" square. |
8. |
Click "Select All" or "Clear All" to select or cancel all fields. |
9. |
After settings are finished, please click "OK" and go back to "Tracklog Settings" dialog box. |
10. |
If you want to open existing tracklog file, click "Open" and select file according to the file path. |
11. |
If you do not want to record GPS track in tracklog, you can click "Close" to close tracklog file and stop recording. |
12. |
Besides settings mentioned above, you can set up streaming transmission. |
13. |

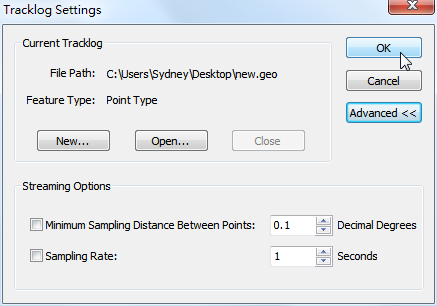

Click "Advanced", "Streaming Options" part is expanded. |
14. |
Check "Minimum Sampling Distance Between Points" and set up the degrees. |
15. |
Check "Sampling Rate" and set up the seconds. |
16. |
When all settings are finished, click "OK" to complete the tracklog settings. |
