Layout and Printing Map > Map Layout > Changing Layout

Templates in User Defined

Templates can be designed and then saved in "User Defined." In this way, users are able to apply designed ones as the layout template.

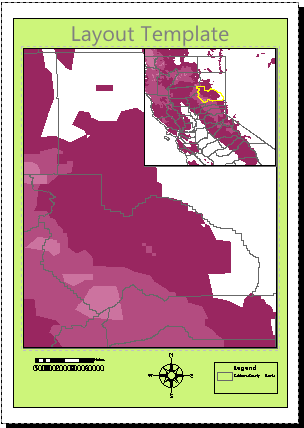

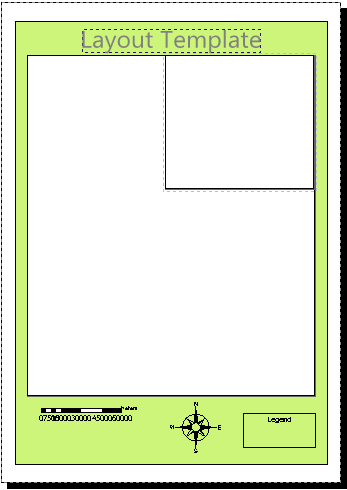

1. Deign template which fit users' demands.

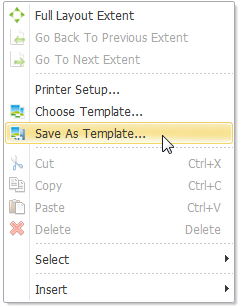

2. To save design template, please follow the steps below. Firstly, right click on the void of the page in "Layout View" window and click "Save As Template." Secondly, see the pop-up window, "Template Name", give a name to the new template (or not) and press "OK." Hence, the designed template will be saved in User Defined.

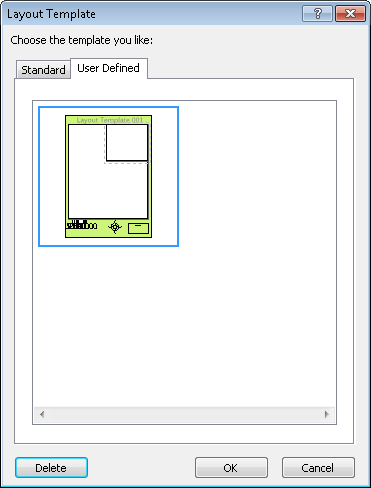

3. To apply the saved templates, please follow the two steps below. Firstly, open "Layout Template" and choose tab "User Defined." Secondly, select the template you want and click "OK." In addition, users can delete the saved template with selecting the target template and pressing "Delete" in the lower left corner of "User Defined" tab.
