Layout and Printing Map > Setting Map Properties

Maintaining Ratio

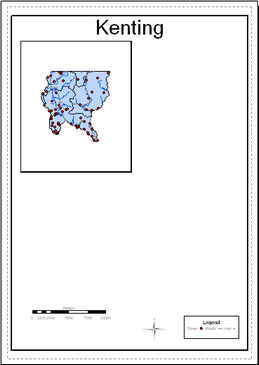

Besides the map you want to output can be resized, the frame of output map can also be resized. See the figures below; figure in lower left side is with original map ratio, while the figure in lower right is the frame with adjusted ratio. Due to the "Maintain Ratio" in the "Element Properties" dialog box is not checked, the frame size can be adjusted without restrictions. However if you want to fix the frame ratio, please click "Maintain Ratio" in the "Position" tab of the "Element Properties" dialog box.

The figure in lower right is the frame result with "Maintain Ratio" checked.
