Generalize Tool

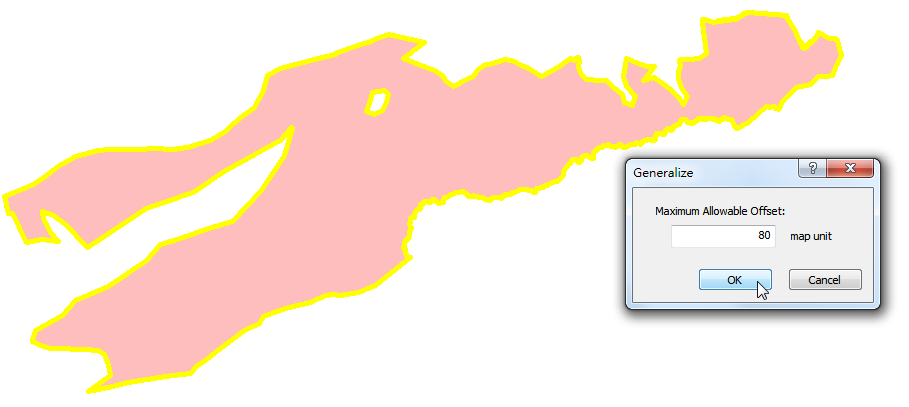

”Generalize Tool” is to generalize polyline and polygon features which have rather complicated line or outline. After selecting a line feature or a polygon feature, click “Generalize Tool” and the “Generalize” window shows up. Enter the “Maximum Allowable Offset” and click “OK”, the selected feature will be generalized. Please see the figures below, they are the result of polygon and polyline feature using generalize tool.







               Original Polygon                                                                                                                              Generalized Polygon

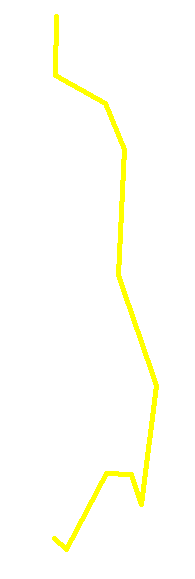

                    Original Polyline                                                                                                                     Generalized Polyline





---
