Setting Visible Scale of Group Layer

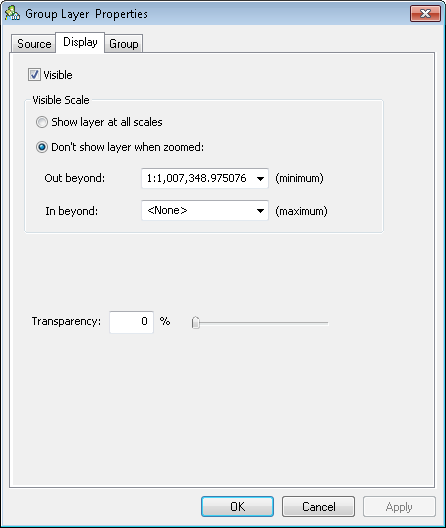

To set the visible scale of group layer, you can right-click the group layer, click "Visible Scale", and set the current scale as the minimum visible scale or maximum visible scale. Meanwhile, you can choose "Properties" on the right-click menu to set the settings in "Display" tab.



　　

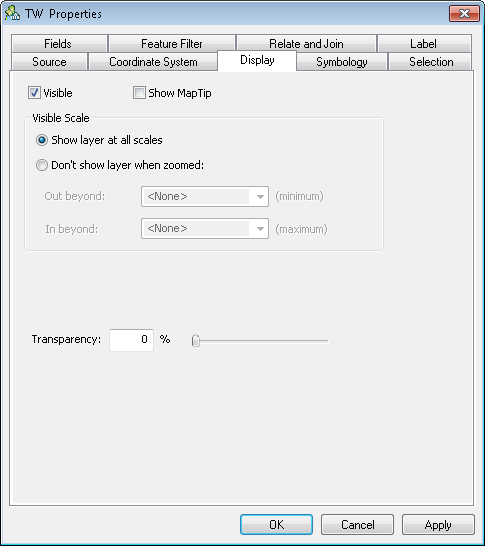

Also, you are allowed to set the display setting of each layer. The way is the same as other layers; right-click the layer name, choose "Visible Scale" or "Properties" to set in "Display" tab.



　　





NOTE: If the setting of the group layer conflicts with the layer in the group layer, the settings of group layer overrides the layer in the group layer.





---
