Offsetting Vertices

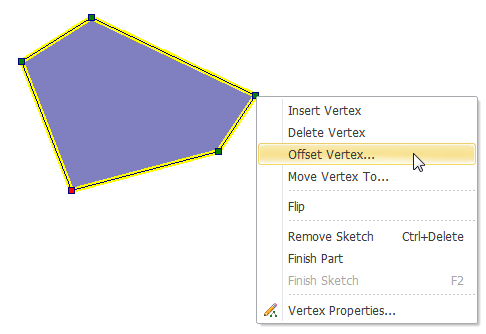

1. Double-click the feature you want to edit and right-click over the vertex you want to offset, and select "Offset Vertex."
2. When "Offset Vertex X, Y" dialog box appears, enter the XY offset in the dialog box.

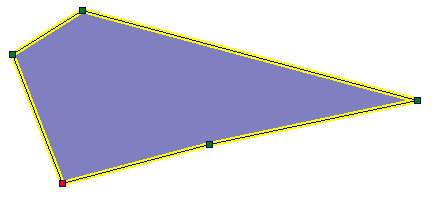

3. Click "OK" to offset the vertex to new location.
.png)
.png)
.png)
Moving Vertices by Keying in Coordinates

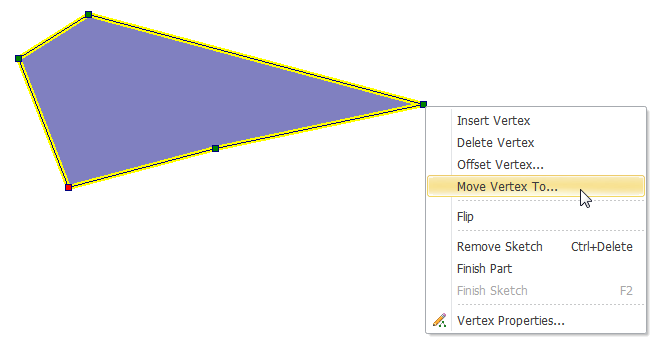

1. Double-click the feature you want to edit and right-click over the vertex you want to move and select "Move Vertex To."
2. When "Move Vertex to X, Y" dialog box shows up, enter the XY coordinates in the dialog box.
3. Click "OK" to move the vertex to the set XY coordinates.
.png)
.png)
.png)
