Inserting Vertices

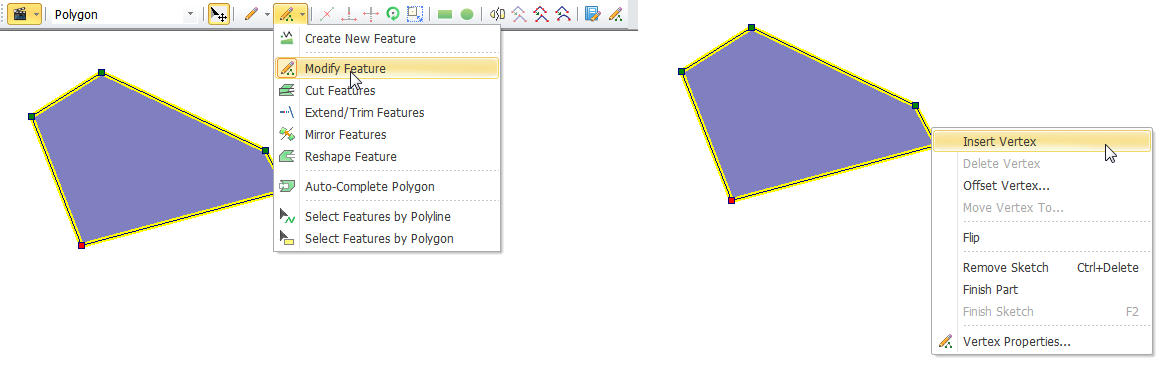

1. After clicking the "Start Editing" tool, double-click the feature you want to edit or click the drop-down menu next to Add New Features, and select "Modify Features."



2. Then select the feature you want to edit. Thus, all of the vertices of the selected feature will show up.

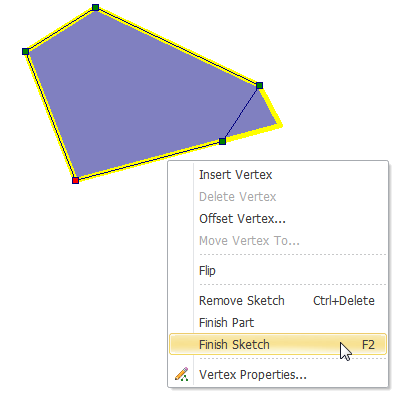

3. Next, move the mouse to the border of the feature and right-click the position you want to add a new vertex, then select "Insert Vertex" and the new vertex will be displayed on the border of the feature.







4. After the vertices are completely edited, end the editing movements to finish feature editing. Directly click over the blank location on the map window or move mouse to the border of the feature and right-click, select "Finish Sketch" and all of the vertices will disappear.







---
