Customizing SuperGIS Desktop 10.1

Customizing Button

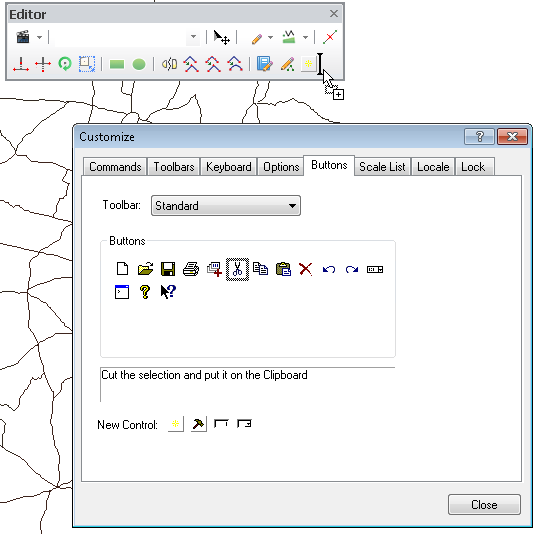

The "Buttons" tab in "Customize" dialog box displays the default buttons of all toolbars and describes the functions. You can select the toolbar which includes the button you want to view on the drop-down menu of "Toolbar", then click over the function key to display the description at the bottom of the dialog box. Besides, the new toolbar buttons can be added in this tab, too. Similarly, select the title of toolbar that includes the tool you want to add then click the toolbar button you want to add and drag it to the desired toolbar location. As the mouse pointer shows, which represents the button can be placed to this toolbar, when you release mouse left key, the toolbar button is added to the toolbar.

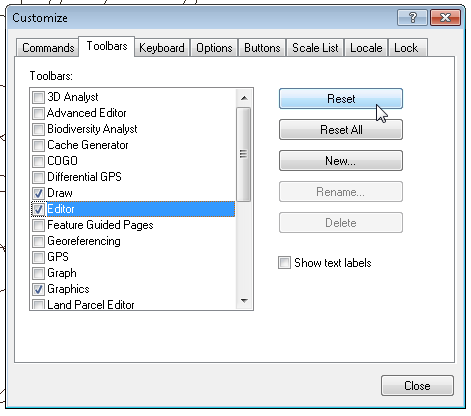

Besides, when "Customize" dialog box is opened, the order of toolbar buttons can be modified. You only need to click over a button, drag to new position then release mouse and the button is placed to new position. If you want the toolbar to return to the default position, you only need to click the toolbar you want to return in the "Toolbars" tab of "Customize" dialog box and click "Reset" to make it.
