Creating Custom Toolbar

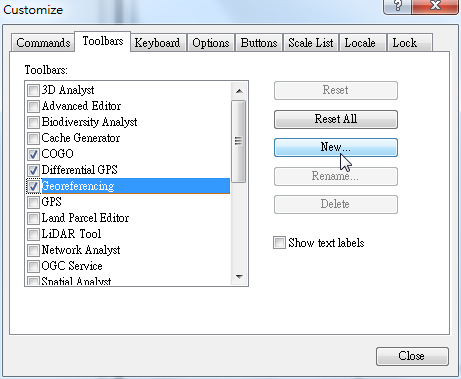

SuperGIS Desktop provides toolbars in two types, one is the built-in toolbars and the other is created by users. In the "Toolbars" tab of "Customize" all of the built-in or custom toolbars are listed; in the right side of the tab, the buttons are "Reset", "Reset All", "New", "Rename" and "Delete." Clicking "New" button can create a custom toolbar and you need to enter the title in "Toolbar Name" in the dialog box. Click "OK" and a blank toolbar shows up. "Delete" function can only be used to delete the custom toolbars. If you select a built-in toolbar, the function of "Delete" will become disabled. Besides, "Rename" function can change titles of both built-in toolbars and custom toolbars. "Reset" function can reset functions of the selected toolbar to the default value; "Reset All" will reset the functions of all the toolbars in list to default value.







　



　

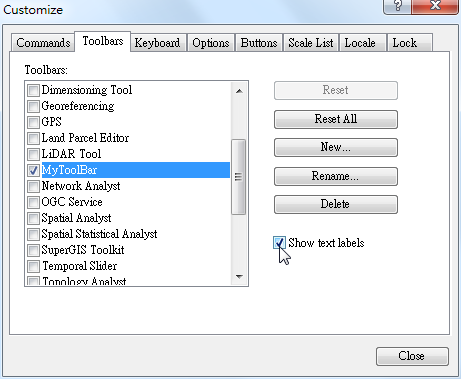

If "Show text labels" is checked, the name of the button will be displayed on the toolbar to assist users in rapidly recognizing the tool buttons.









---
