Basic Manipulation





Layer Manager provides basic layer management functions, including changing the layer order, deleting layer, changing the symbol, etc.

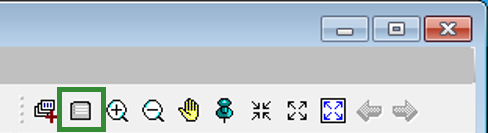

Opening Layer Manager



Click Layer Manager button on Control Toolbar in the right part of SuperGIS DataRectifier to Open Layer Manager.

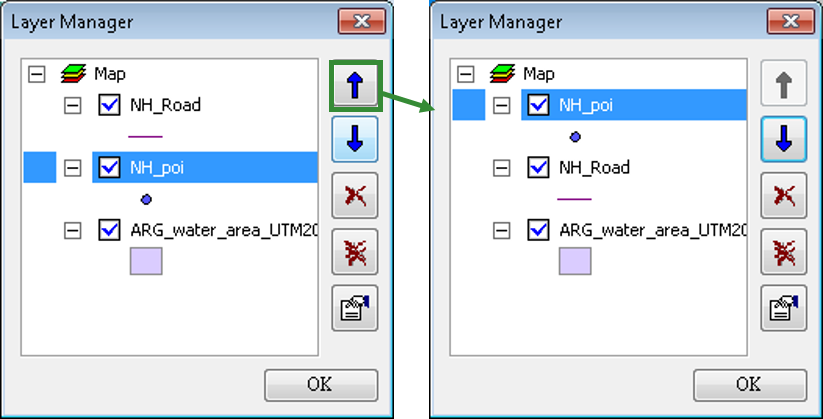

Changing the Order of Layers



The order of layers influences the display result of maps; the upper layer covers the lower layer. In general, the order of overlaying layers is point layer as the top layer, polyline layer at the middle, and polygon layer as the bottom layer. If there is a raster layer in the map, the raster layer is usually the bottom layer, instead of polygon layer. You can click Up or Down button in Layer Manager to change the order of layers.

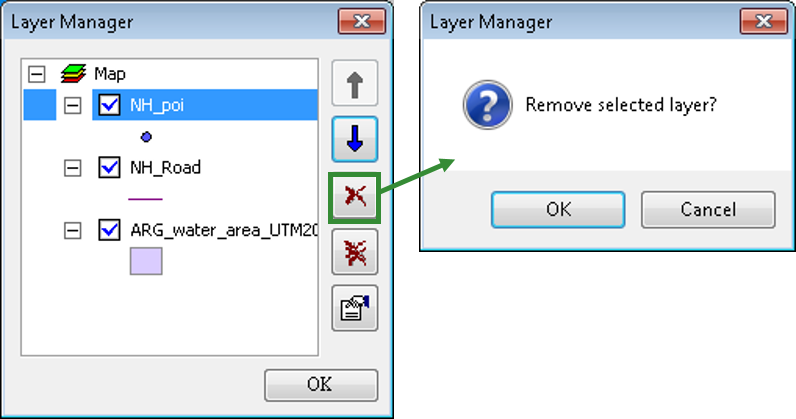

Deleting a Single Layer



Select a single layer you want to delete in Layer Manager.







Deleting All Layers



You can delete all of the layers in Layer Manager.

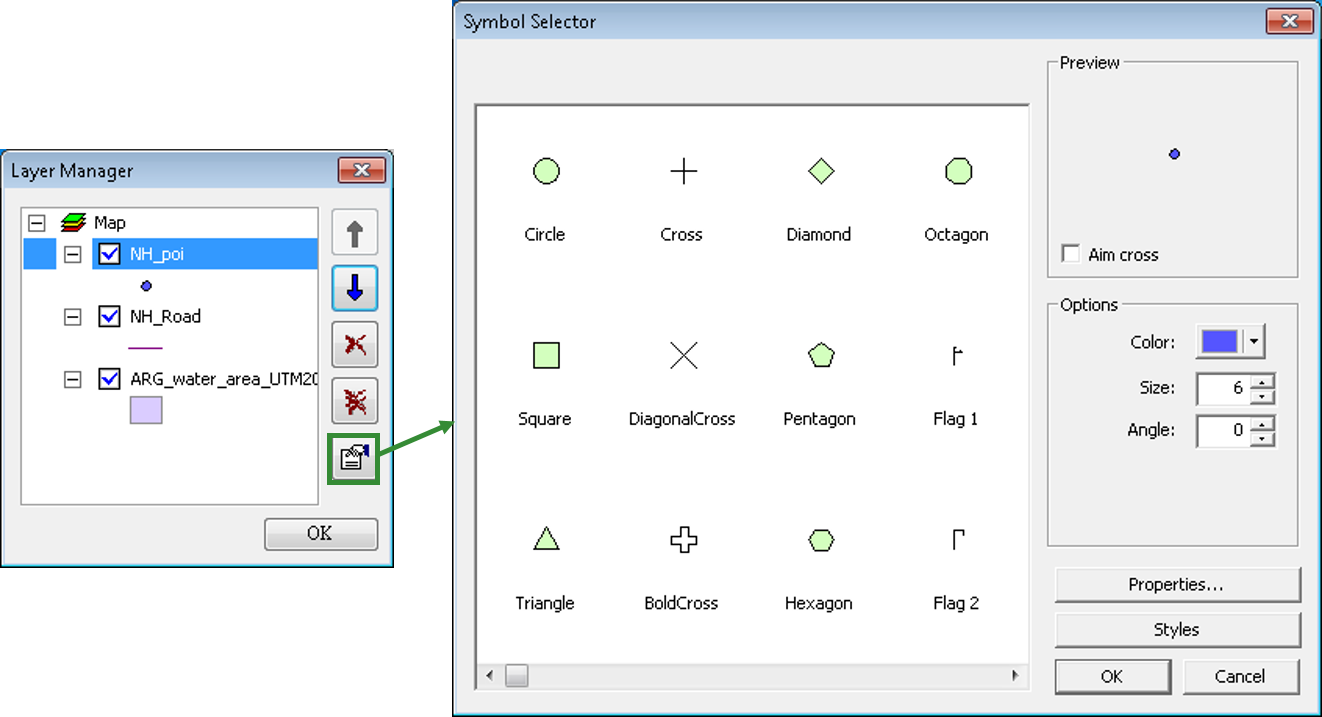

Changing the symbol of layers



In Layer Manager, you can apply Symbol Selector and Symbol Editor to edit the symbol and property of each vector layer.









---
